Flowserve Durco Mark 3 Centrifugal Pump, MK3 Standard, 1K1.5X1-82/6.63 RV, CD4M

Item #: 292334785602

ITEM SOLD

Flowserve Durco Mark 3 Centrifugal Pump, MK3 Standard, 1K1.5X1-82/6.63 RV, CD4M

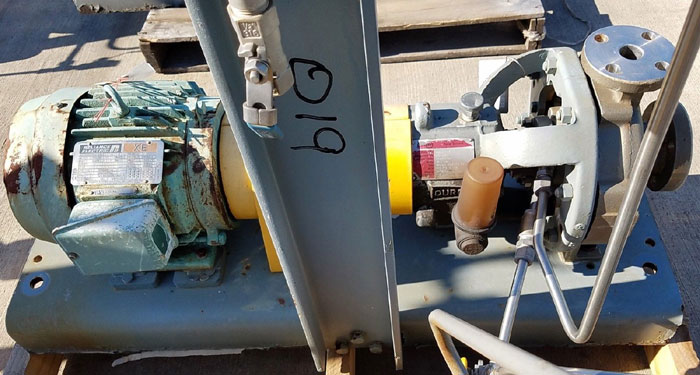

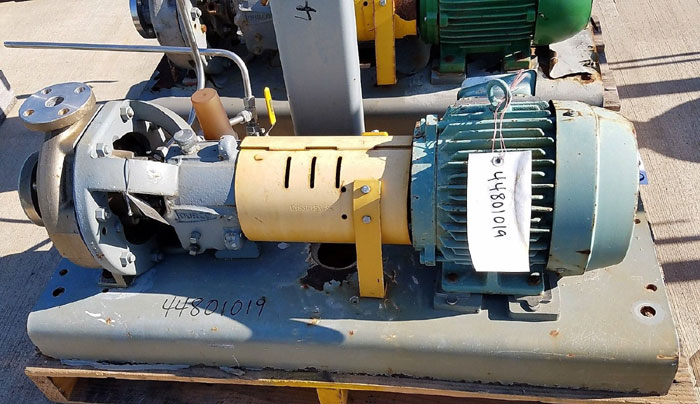

  • Flowserve Durco Mark 3 Centrifugal Pump

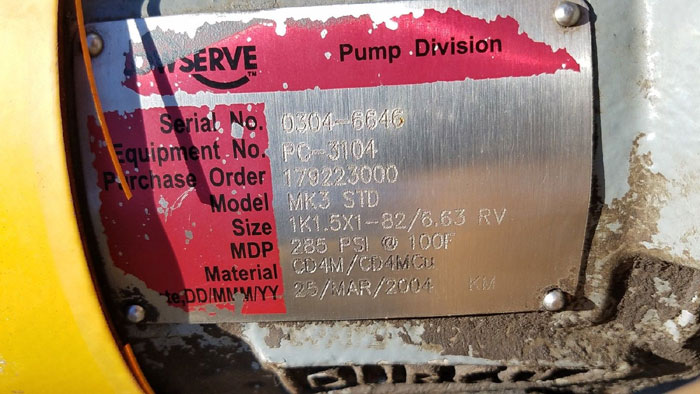

  • Model#: MK3 STD
  • Serial#: 0304-6646
  • Size: 1K1.5X1-82/6.63 RV
  • 1.5" Inlet
  • 1" Outlet
  • Imp Dia: 6.63"
  • MDP: 285 PSI @ 100°F
  • Material: CD4M/CD4MCu
  • Approximate Ratings: Flow GPM: 5
  • TDH ft: 24'

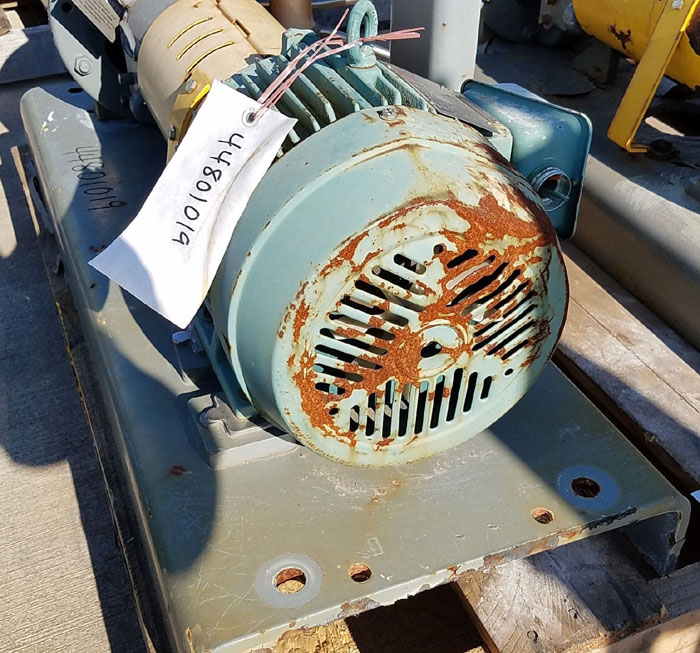

  • RPM: 1750 with Reliance Electric XE Motor
  • ID#: P18G7402 FF
  • HP: 3
  • Frame: 182T
  • Phase: 3
  • Volts: 230/460
  • Design: B
  • Type: P
  • RPM: 1750
  • Amps: 7.8/3.9
  • Hz: 60
  • Amb: 40°C
  • S.F.: 1.15
  • Duty: Cont

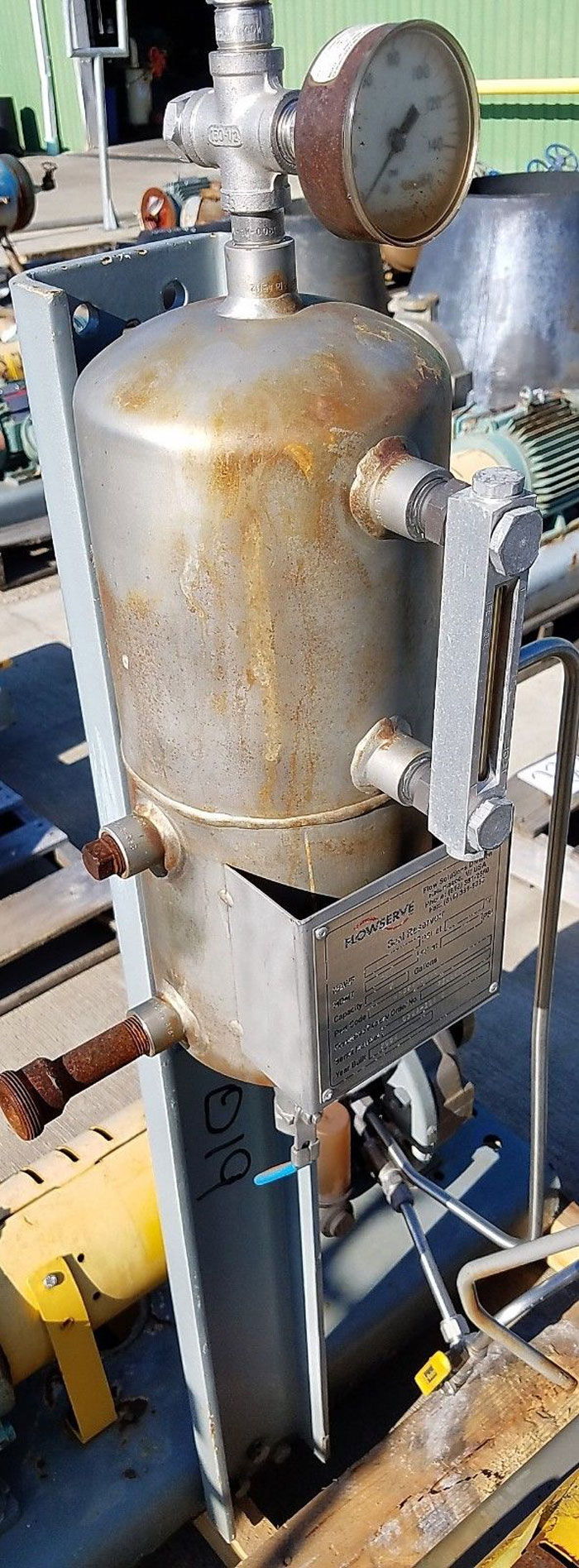

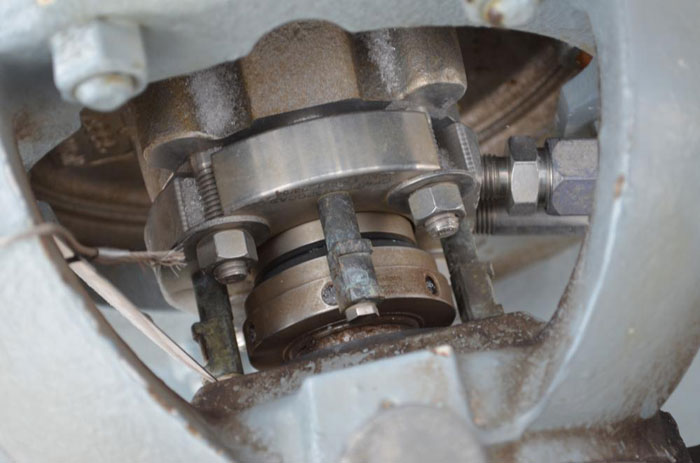

  • Encl.: TEFC w/ Flowserve Seal Reservoir
  • Part Code#: W5324N3000
  • MAWP: 160 PSI @ 100°F
  • MDMT: -20°F @ 160 PSI
  • Capacity: 2 Gallons
  • Mounted on a base.
  • Built 2004.
