TOSHIBA 1.0 HP HIGH EFFICIENCY EPACT-CT 3-PHASE INDUCTION MOTOR 0014FTSA21A-P

TOSHIBA 1.0 HP HIGH EFFICIENCY EPACT-CT 3-PHASE INDUCTION MOTOR 0014FTSA21A-P

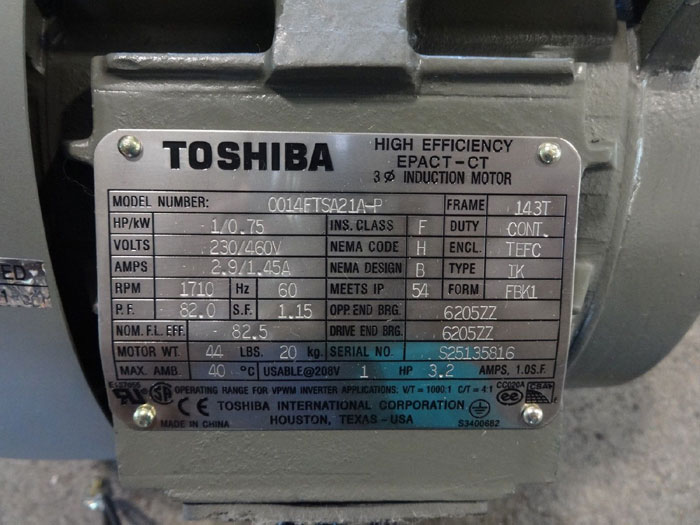

• TOSHIBA HIGH EFFICIENCY EPACT-CT 3-PHASE INDUCTION MOTOR
• MODEL#: 0014FTSA21A-P
• HP/KW: 1.0/0.75
• VOLTS: 230/460V
• AMPS: 2.9/1.45A
• RPM: 1710
• Hz: 60
• P.F.: 82.0
• S.F.: 1.15
• NOM F.L. EFF: 82.5
• MAX AMB: 40°C
• FRAME: 143T
• DUTY: CONT
• ENCL: TEFC
• TYPE: IK
• FORM: FBK1
• USABLE @ 208V: 1 HP, 3.2 AMPS, 1.0 S.F.
