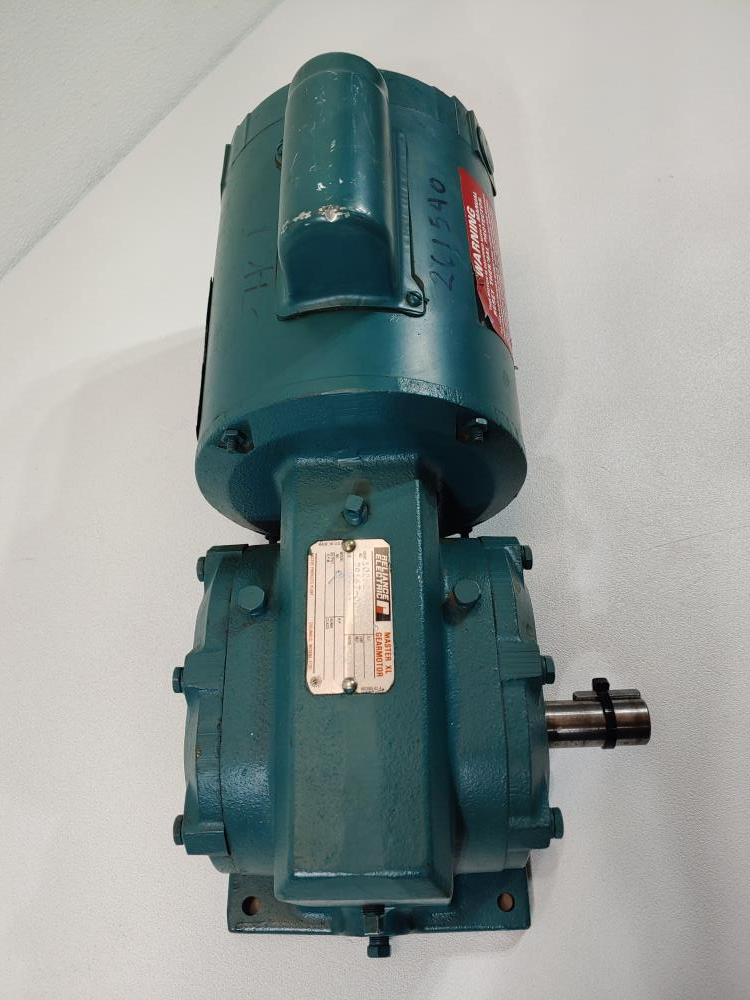

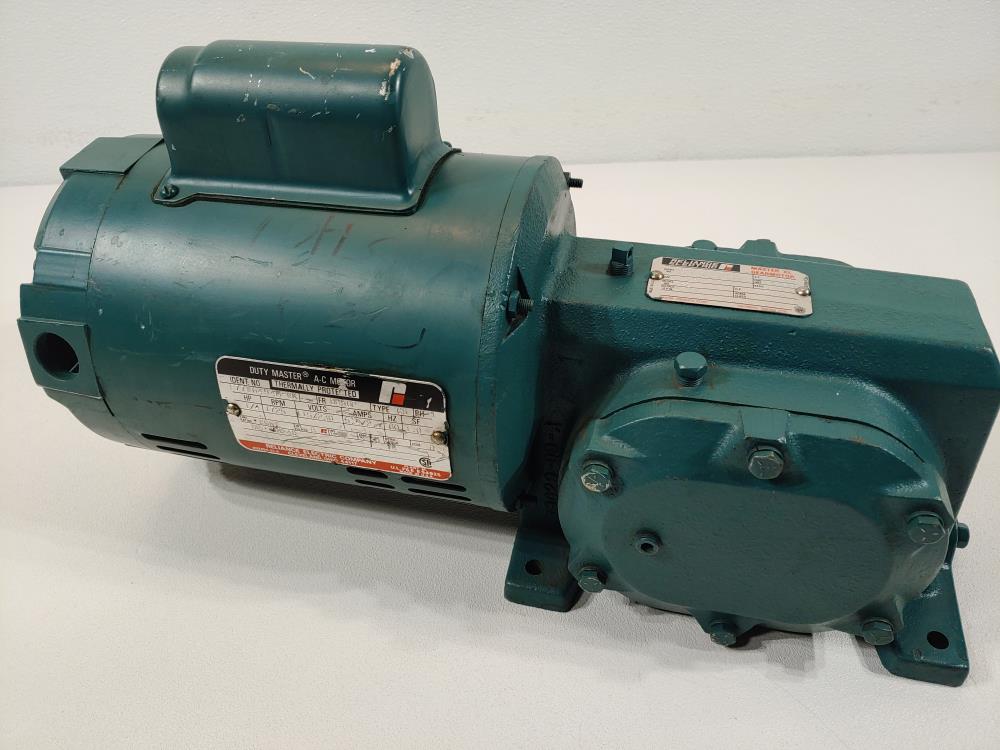

Reliance Electric Master XL 240:1 Ratio 1/4 HP Right Angle Gearmotor

Reliance Electric Master XL 240:1 Ratio 1/4 HP Right Angle Gearmotor

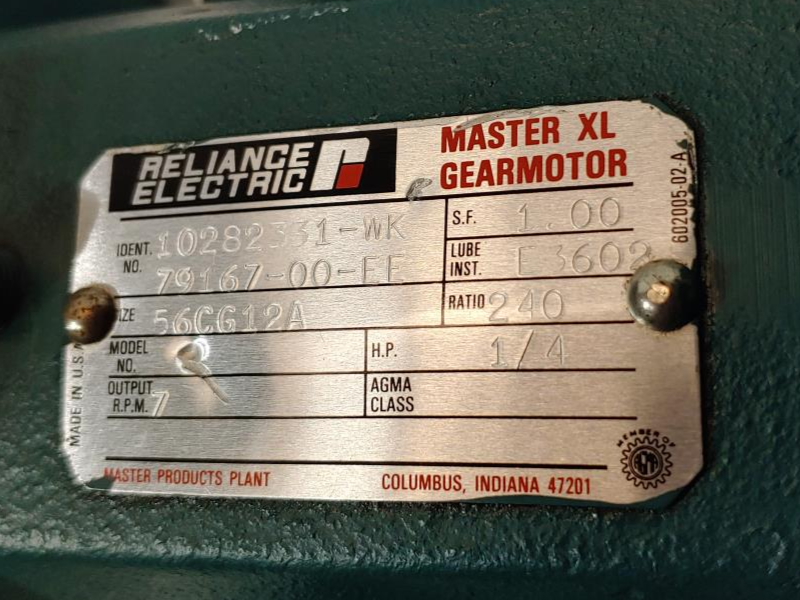

• Reliance Electric Master XL Gearmotor
• Ratio: 240:1
• Size: 56CG12A
• Gearbox Output RPM: 7
• Gearbox S.F.: 1.00
• Gearbox ID: 10282331-WK /79167-00-EE

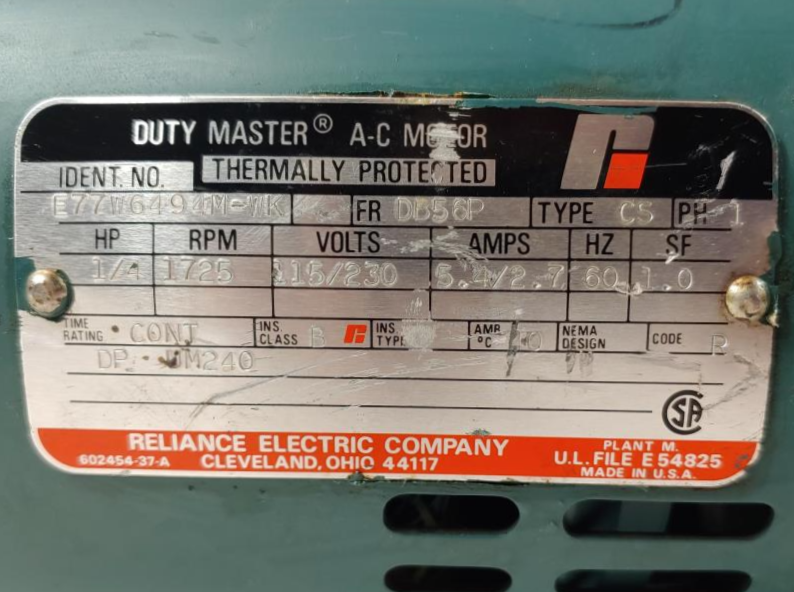

• Reliance Duty Master Thermally Protected A-C Motor
• Motor ID: E77W6494M-WK
• Motor HP: 1/4
• Motor RPM: 1725
• Motor Frame: DB56P
• Motor Type: CS
• Motor Volts: 115/230
• Motor Amps: 5.4/2.7
• Motor Hz: 60
• Motor Phase: 1
• Motor Time Rating: Continuous
• Motor Insul Class: B
• DP UM240

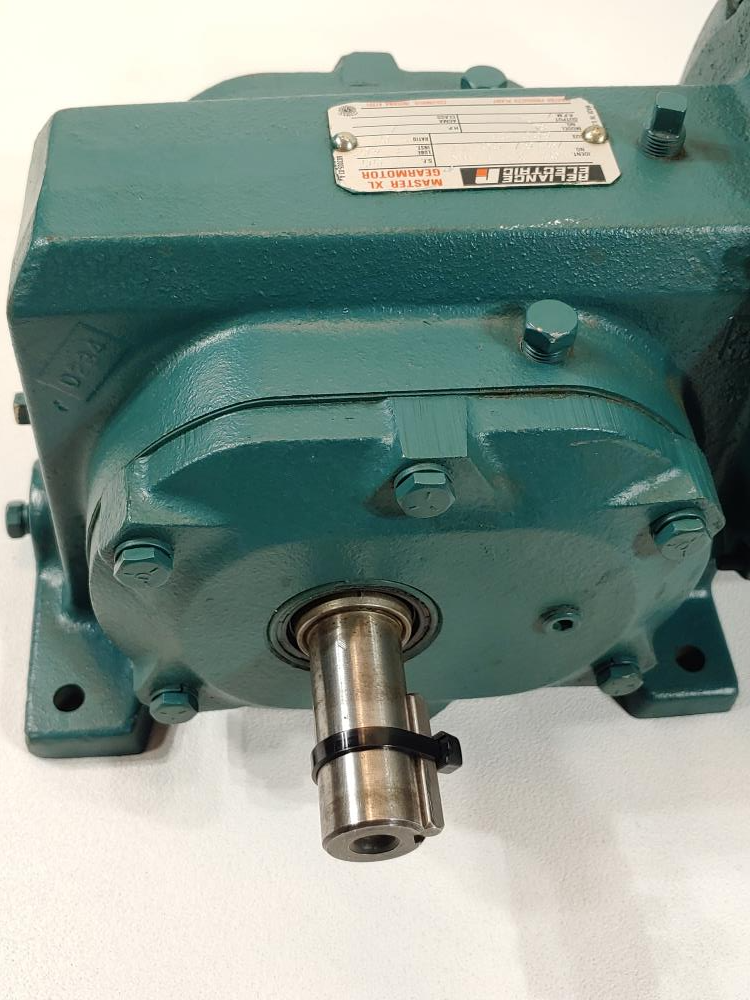

• Gearbox Shaft Size: 7/8" Diameter x 2" Long
