Rosemount 1/2" PTFE Lined Magnetic Flowtube 8711SHA005U3N5G1

Rosemount 1/2" PTFE Lined Magnetic Flowtube 8711SHA005U3N5G1

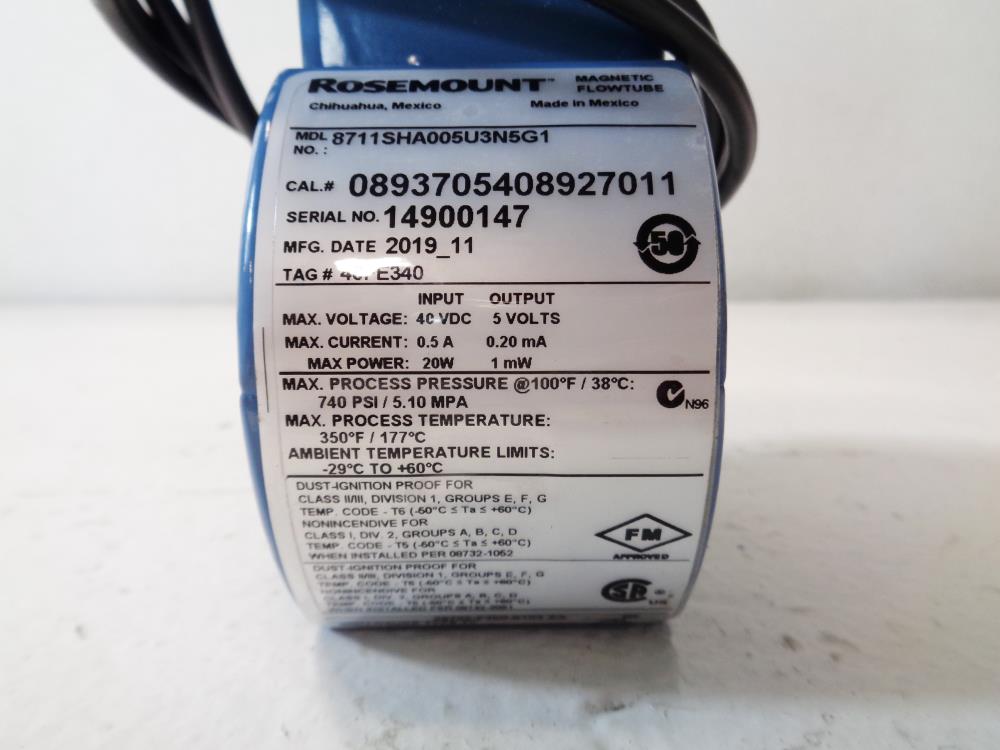

• Flowtube Model#: 8711SHA005U3N5G1
• Size: 1/2"

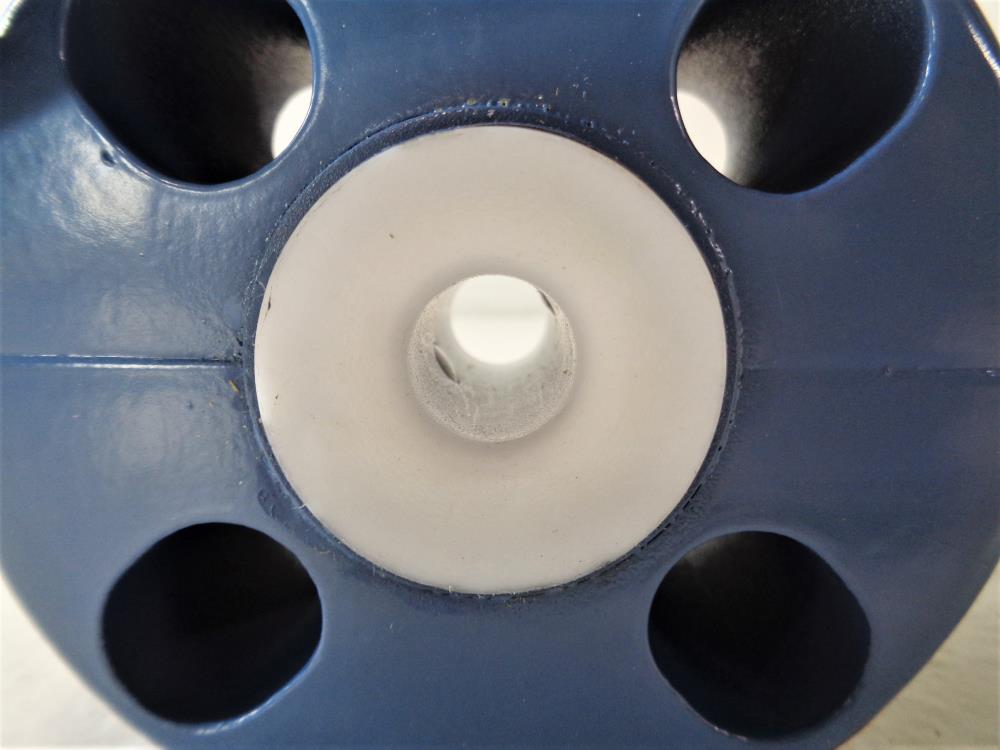

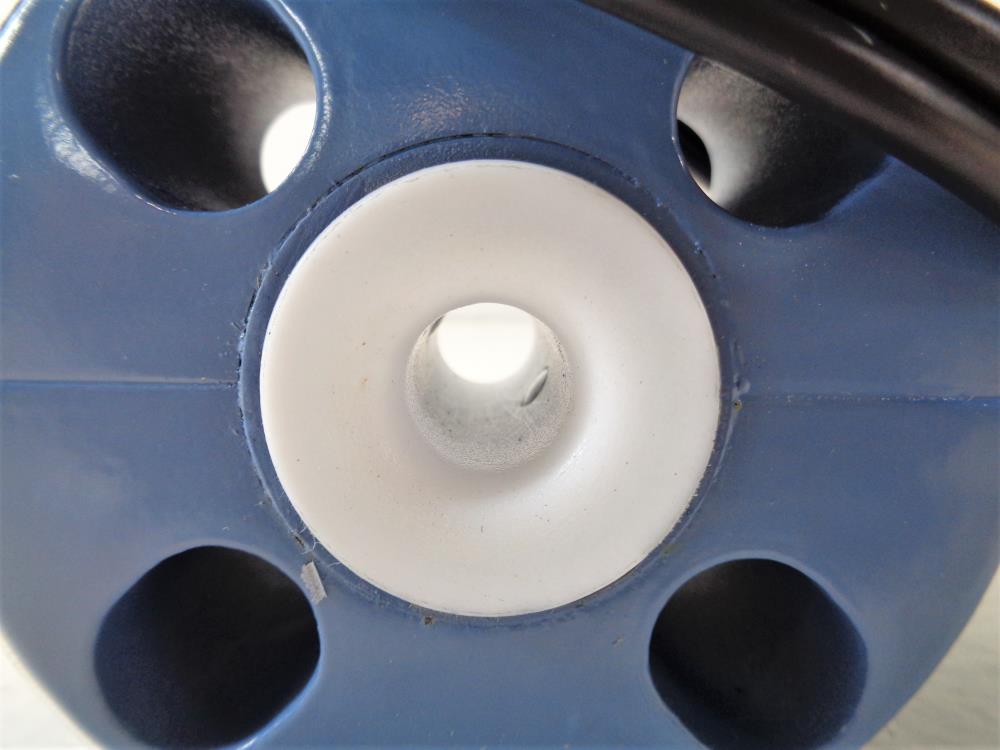

• PTFE Lined
• Max Voltage: 40 VDC Input • 5 Volts Output
• Max Current: 0.5A Input • 0.20mA Output
• Max Power: 20W • 1mW
• Max Process Pressure @ 100°F / 38°C: 740 PSI / 5.10 MPA
• Max Process Temperature: 350°F / 177°C
• Ambient Temperature Limits: -29°C to + 60°C

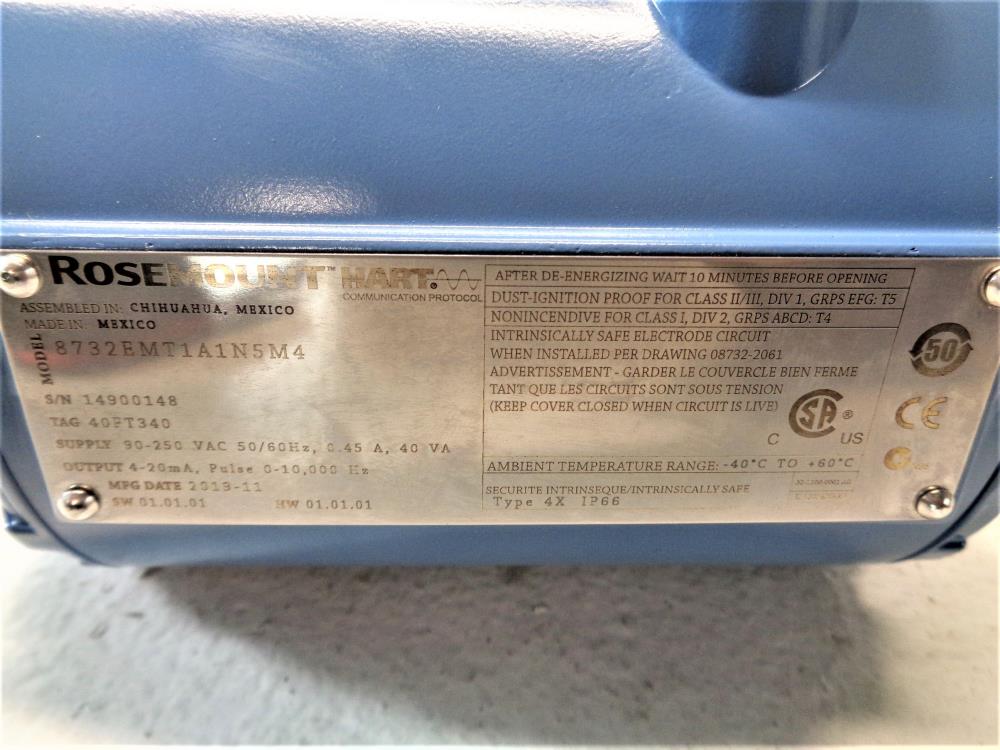

• Transmitter Model#: 8732EMT1A1N5M4
• Supply: 90 - 250 VAC, 50/60 Hz, 0.45A, 40 VA
• Output: 4 - 20 mA, Pulse 0 - 10,000 Hz
