Crane Flowseal 6" 150# WCB Actuated Butterfly Valve, SS Disc 06-1WA-12DTTG-HOJ

Crane Flowseal 6" 150# WCB Actuated Butterfly Valve, SS Disc 06-1WA-12DTTG-HOJ

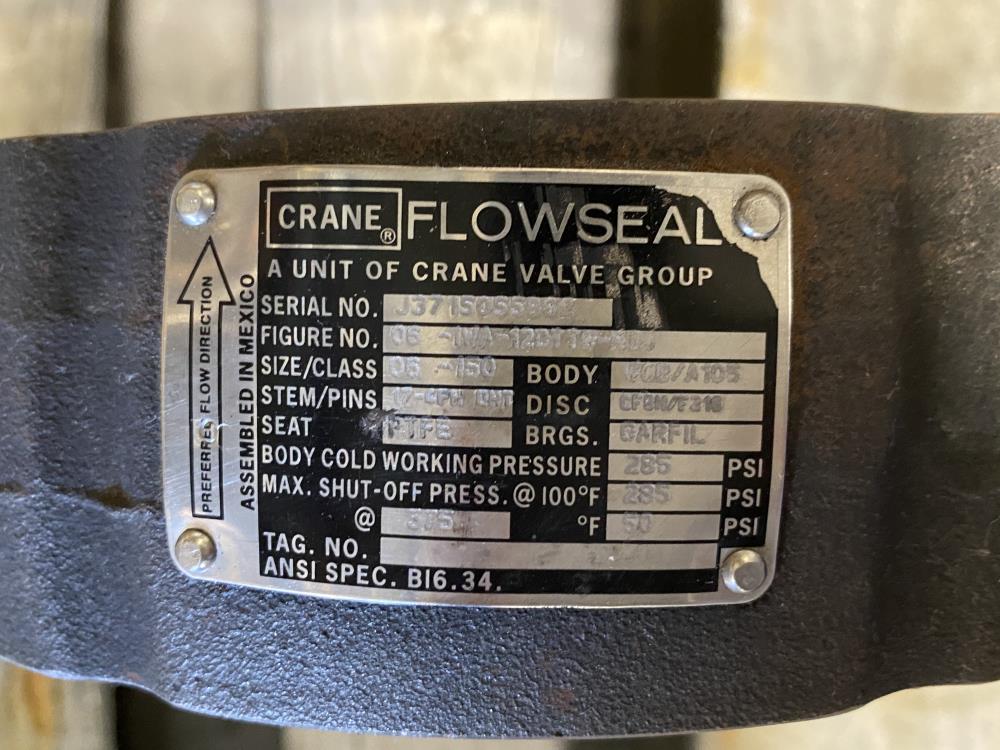

• Figure#: 06-1WA-12DTTG-HOJ
• Size: 6"
• Class: 150
• Body: WCB/A105
• Stem/Pins: 17-6PH DNT

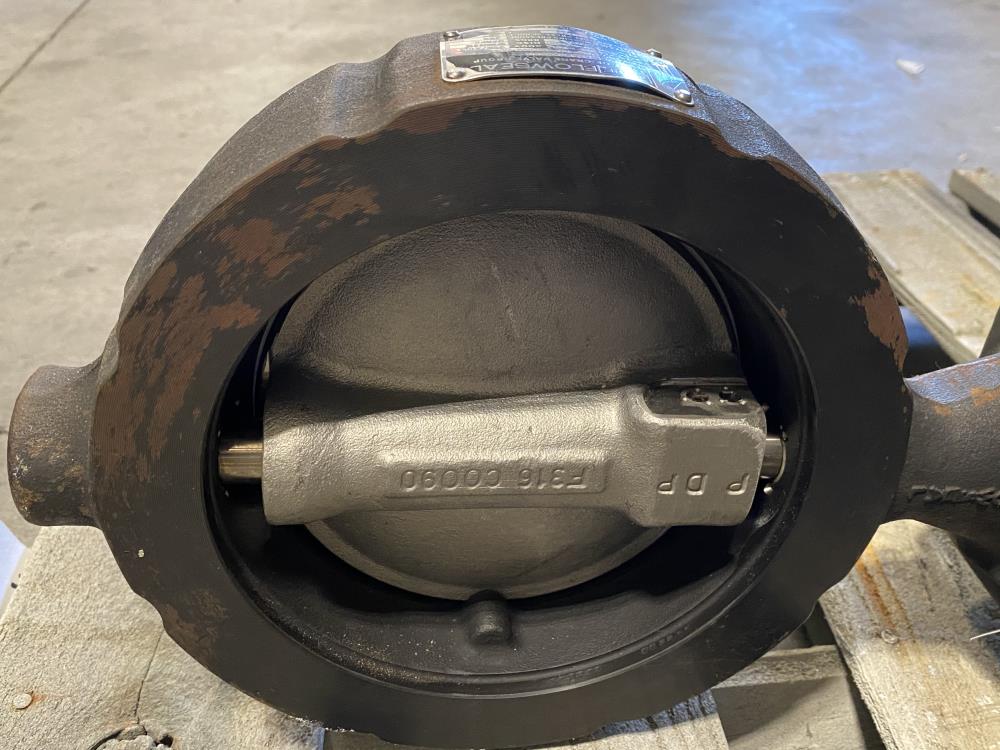

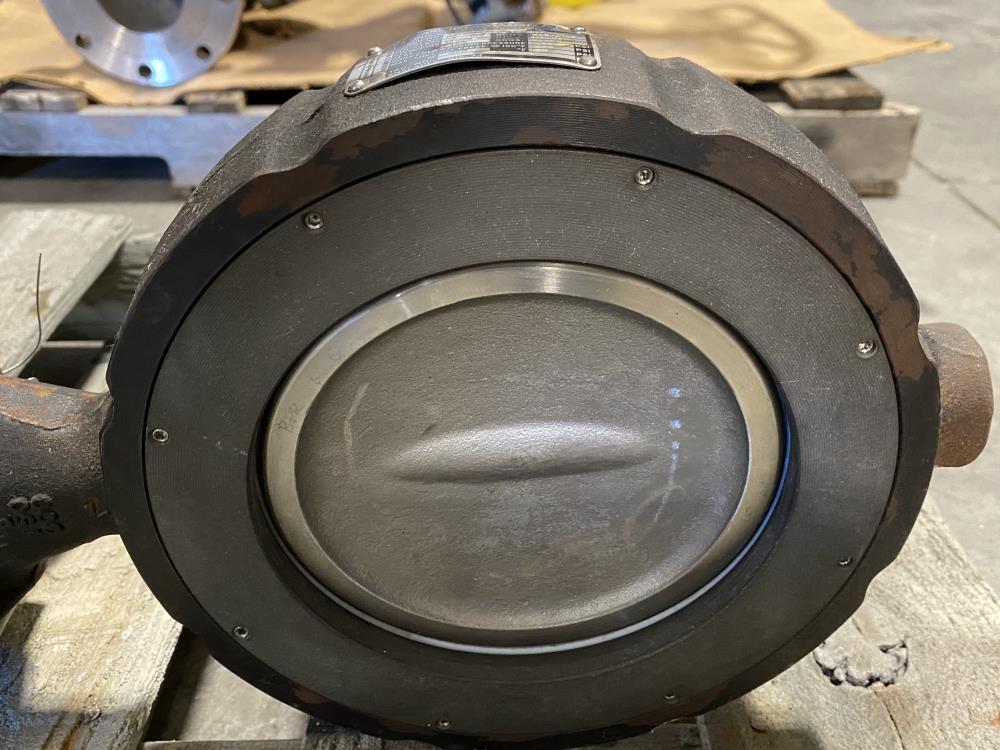

• Disc: CF8M/F316
• Seat: PTFE
• Brgs: Garfil
• Body Cold Working Pressure: 285 PSI
• Max. Shut-Off Press @ 100°F: 285 PSI
• @ 375°F: 50 PSI
• ANSI Spec. B16.34

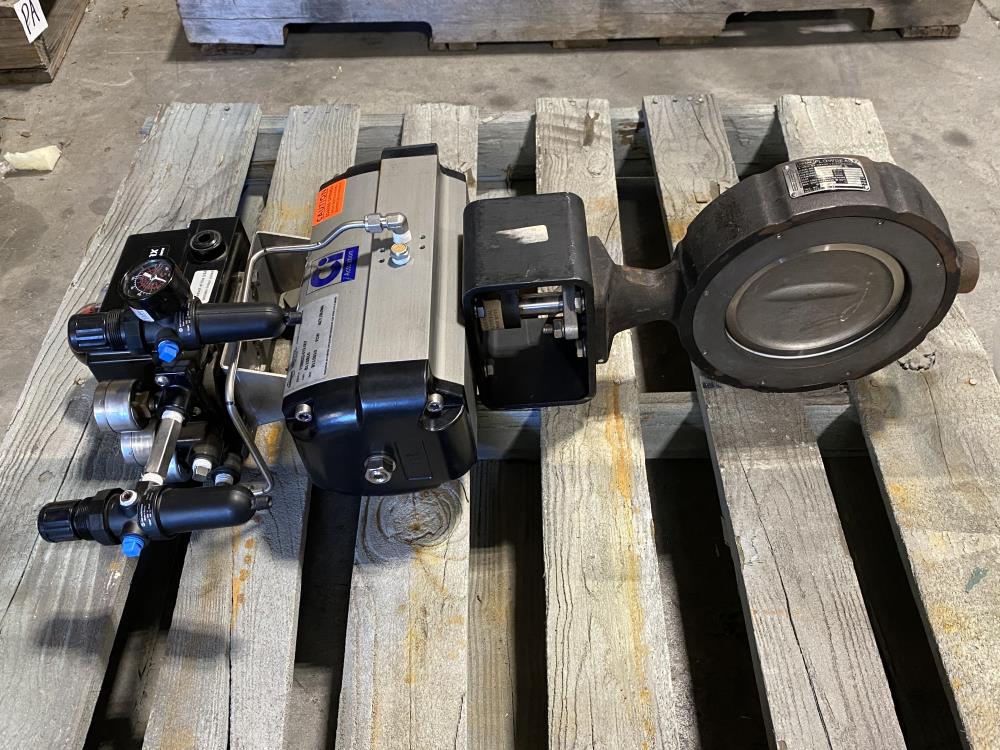

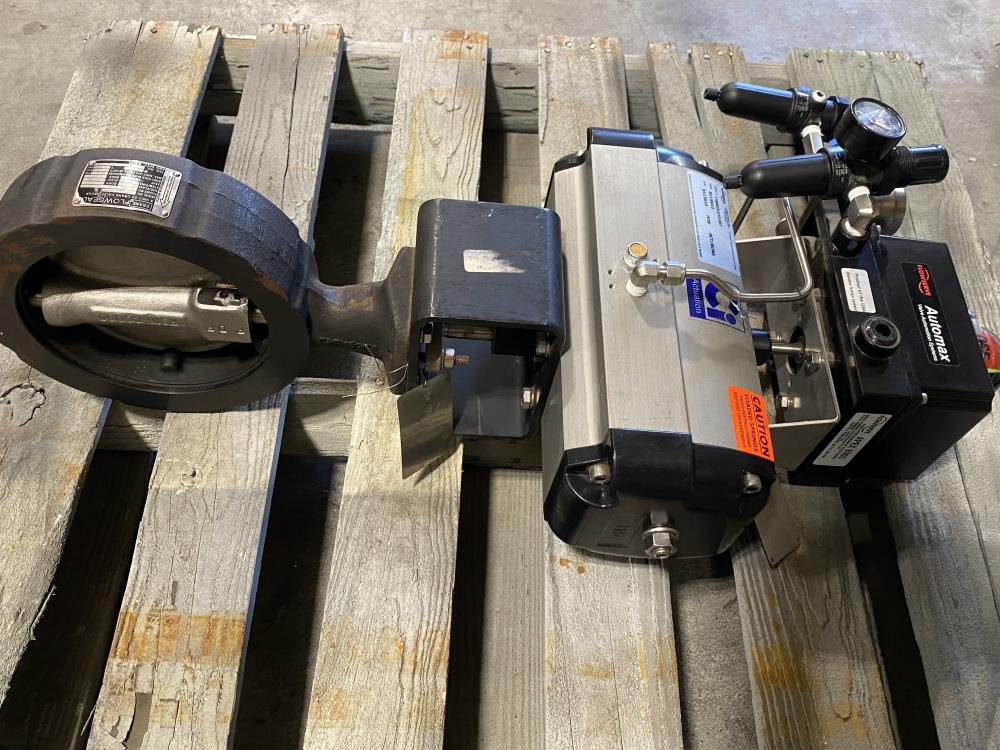

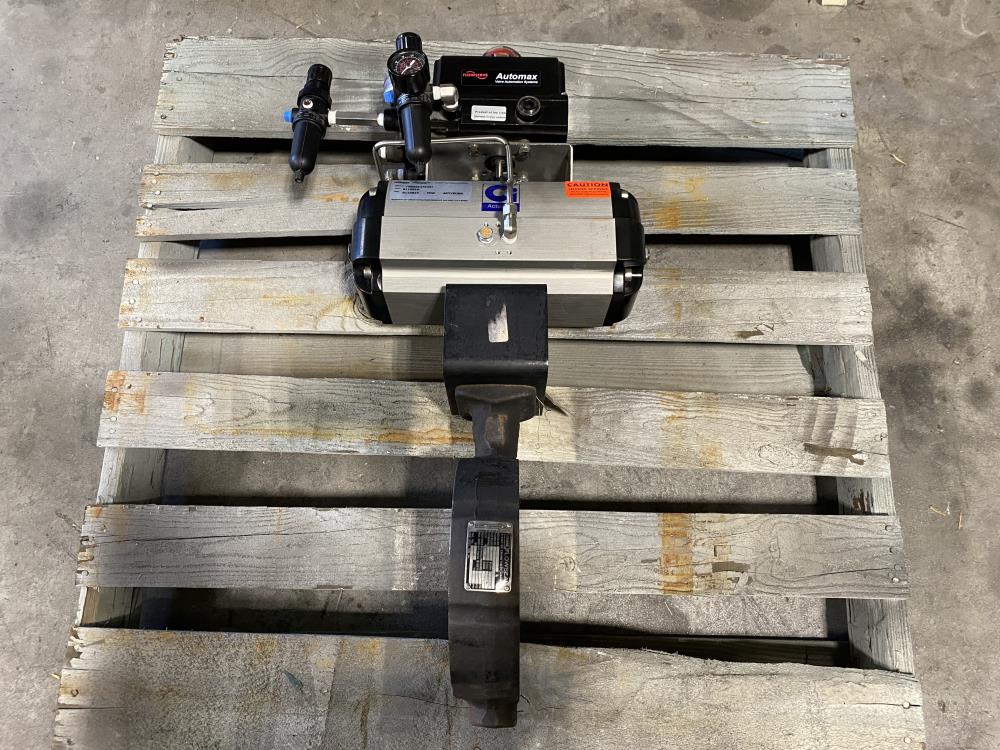

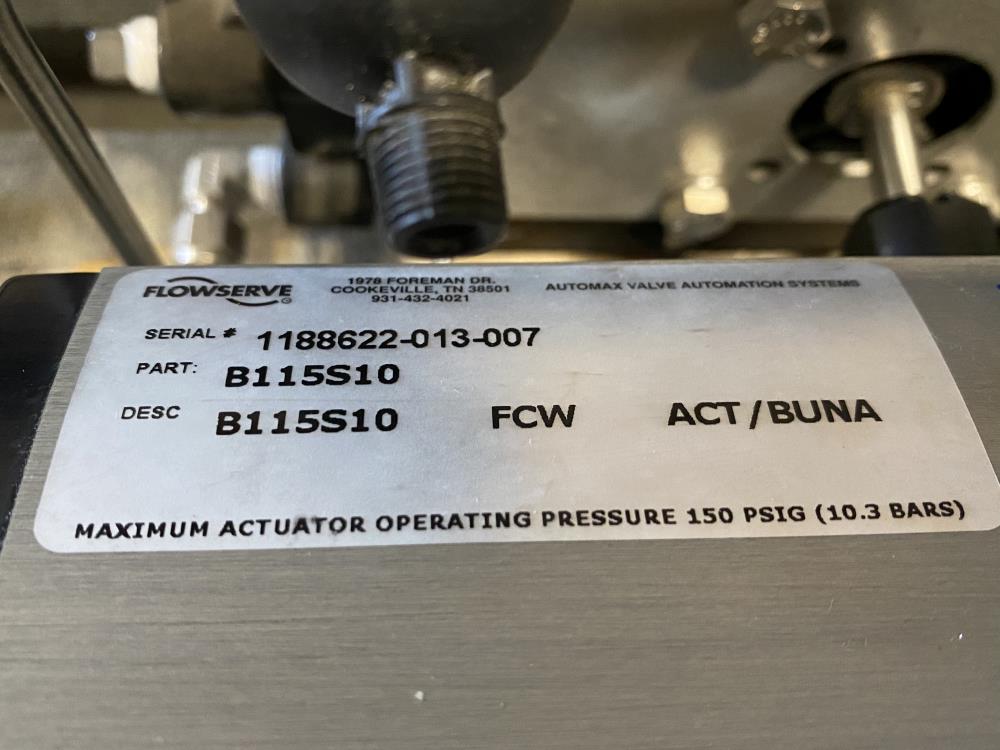

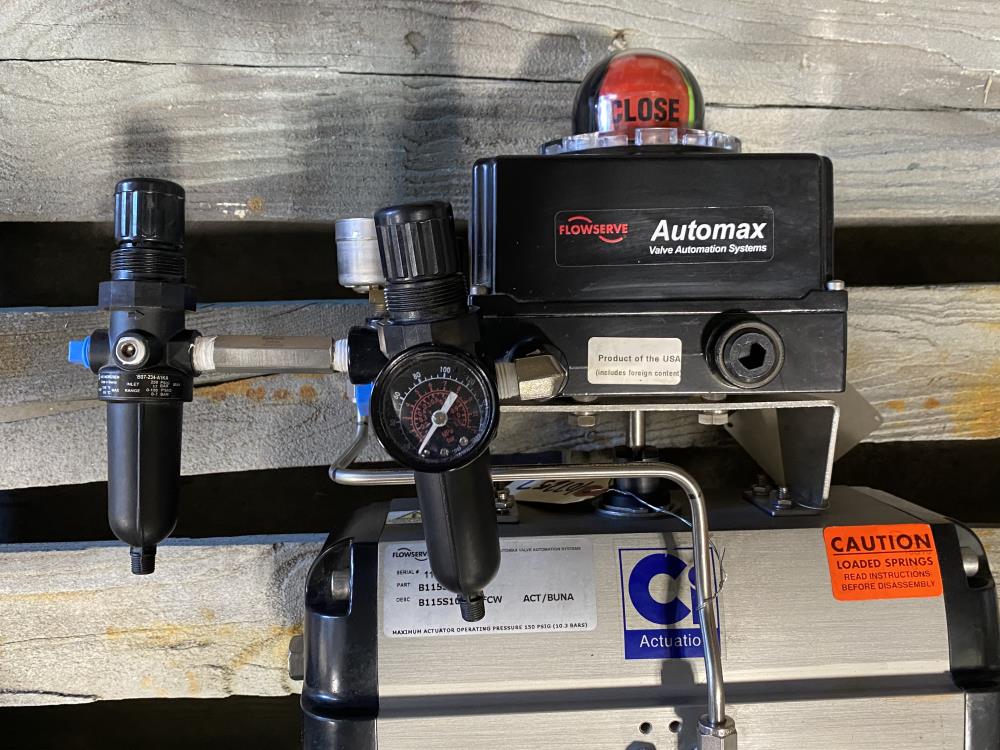

• w/ Flowserve Automax Actuator, Part#: B115S10 • FCW • ACT/BUNA
• Max Actuator Operating Press: 150 PSIG

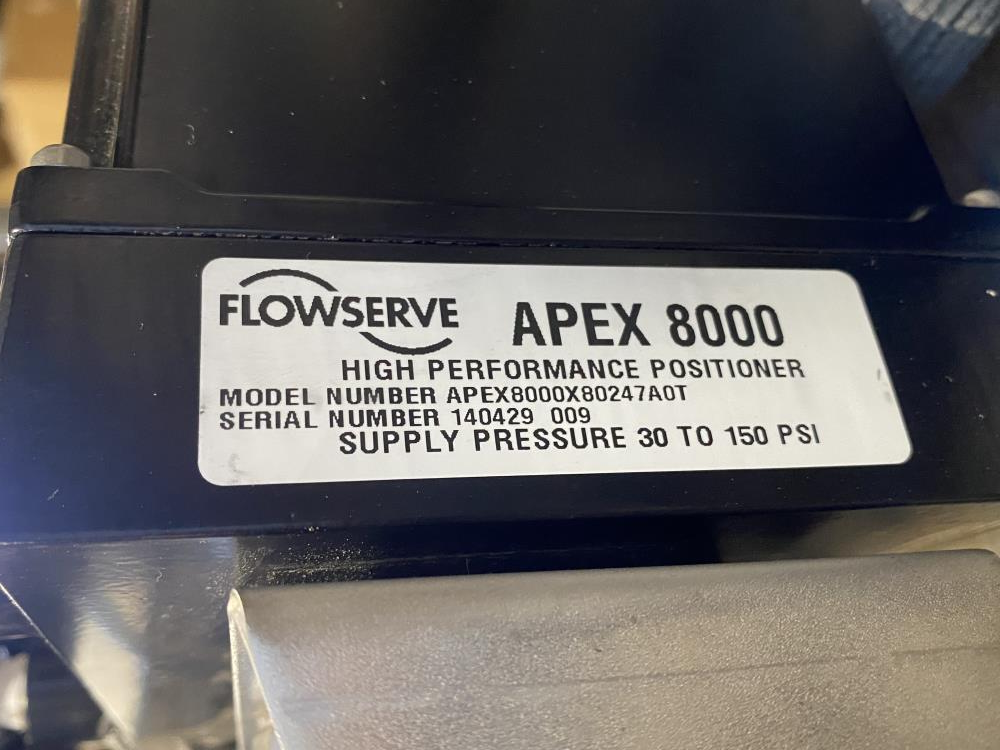

• Flowserve APEX 8000 High Performance Positioner
• Model#: APEX8000X80247A0T
• Supply Pressure: 30 to 150 PSI
