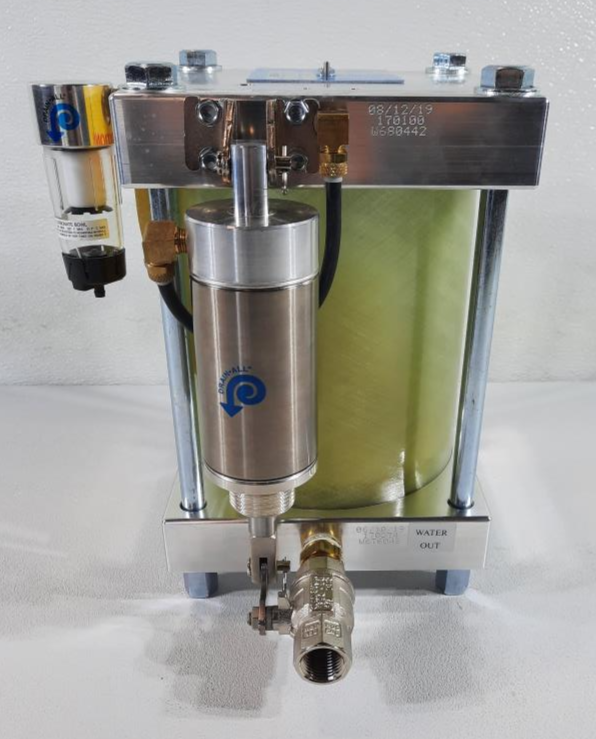

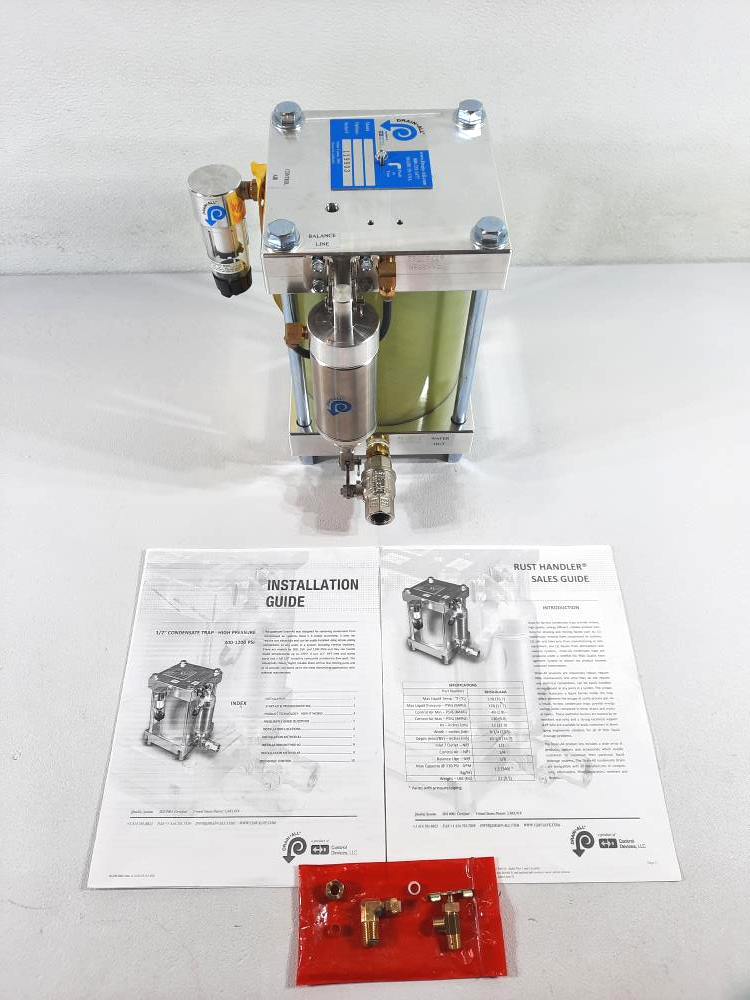

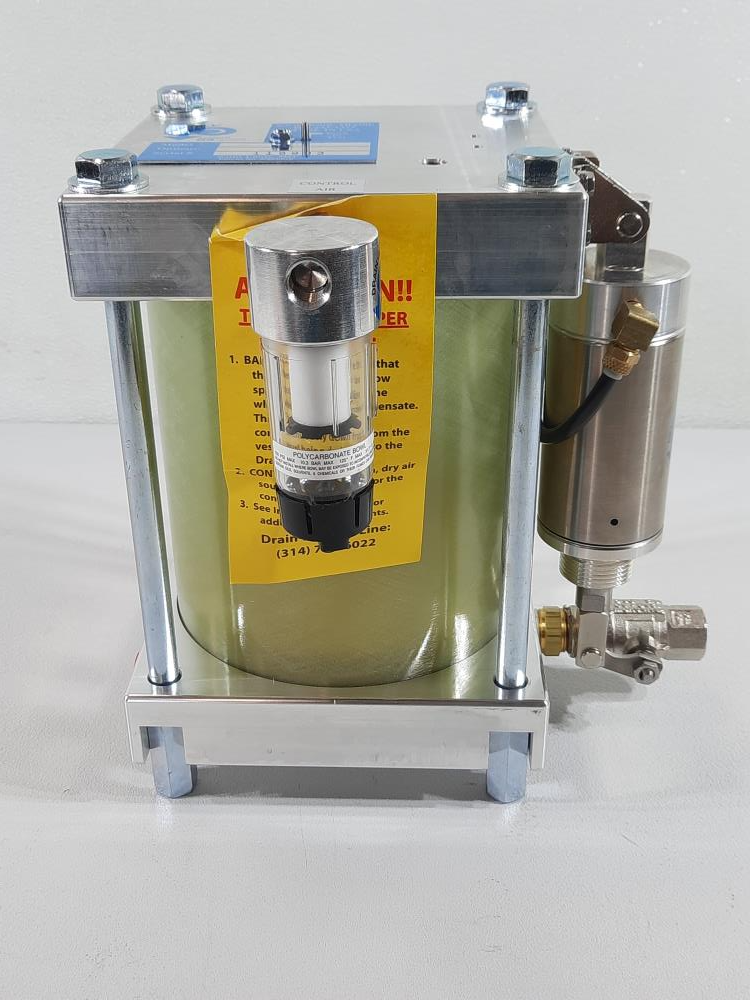

Drain-All Condensate Drain Rust Handler, Model RH
- Drain-All® Zero-Loss Condensate Trap from Control Devices

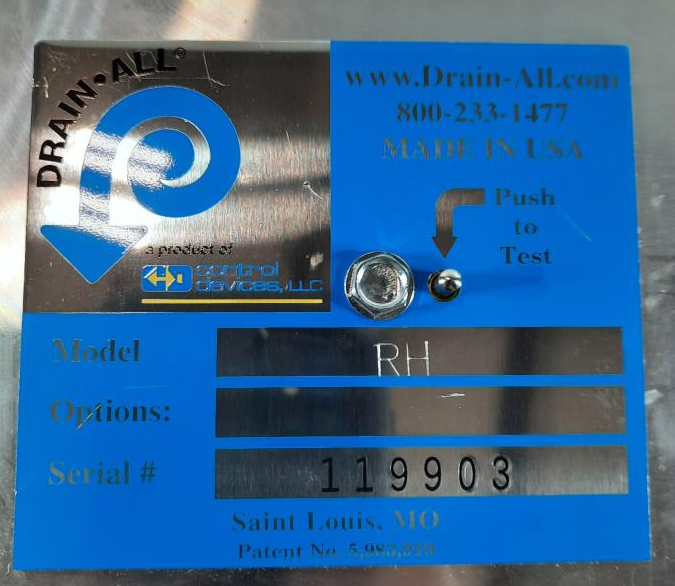

- Model: RH

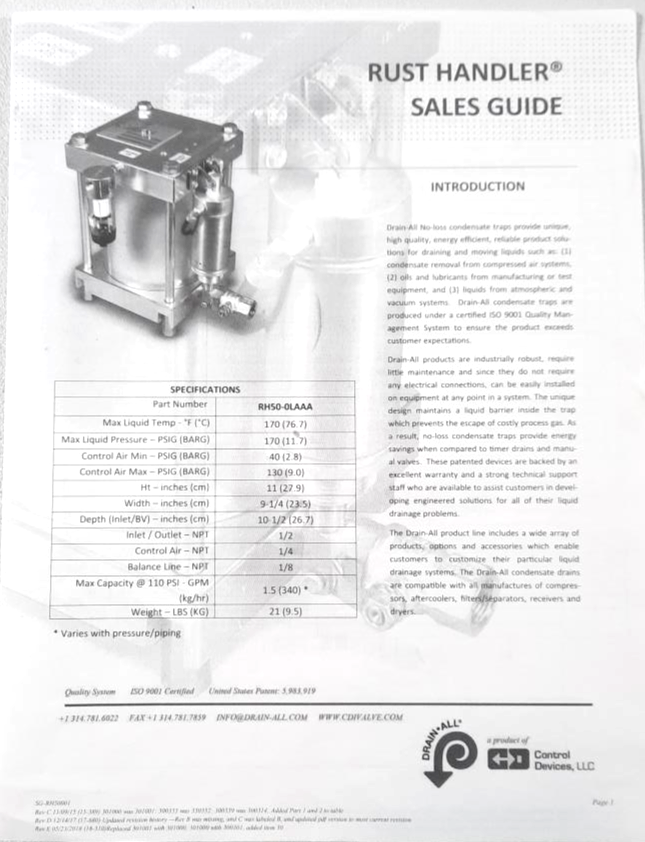

- Max Liquid Temp-°F (°C) 170 (76.7)
- Max Liquid Pressure-PSIG(BARG) 170(11.7)
- Control Air Min-OSIG(BARG) 40(2.8)
- Control Air Max-PSIG (BARG) 130(9.0)
- Ht-inches(cm) 11(27.9)
- Width-inches(cm) 9-1/4(23.5)
- Depth(inlet/BV)-inches(cm) 10-1/2(26.7)
- inlet/outlet-NPT 1/2"
- Control Air-NPT 1/4"
- Balance Line-NPT 1/8"
- Max Capacity@110PSI=GPM 1.5(340)*
- weight-LB (KG) 21(9.5)
- Drain-All Condensate Drain Rust Handler
